PLC Program Control Automatic Paper Napkin Packing Machine 30-60 packs per min
YY-T200 Automatic Paper Napkin Packing Machine
Description

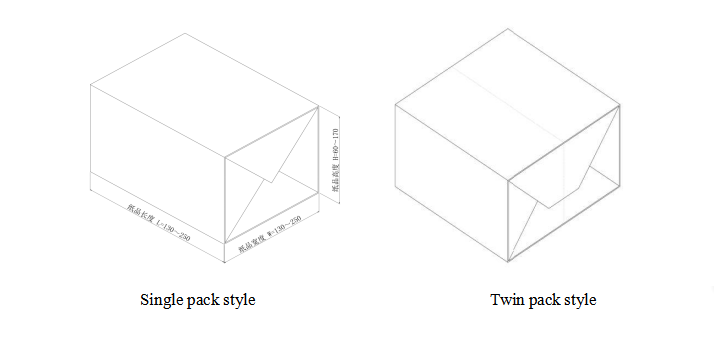

YY-T200 Automatic Paper Napkin Packing Machine is developed for single packaging and twins packaging of facial tissues, napkin tissues, kitchen paper, V-fold paper towels.
This machine adopts 8 sets servos for controlling the movements,they are main pusher,paper feeding,film pulling,film cutting,perforation,paper center sending,paper forwarding,package pressing,dynamic edge guides,siding sealing sewing,side seal lift up & down,film folding lift up & down.With advantages of complete operation configuration,high efficiency,easily operation,wide size applicable range,quick for side changeover,convenient for maintenance,low cost for using etc.
Technical Specification
| Features | Description | Remark |
| Scope of application | Film pack soft drawn facial tissue,hand towel,single pack napkin,twin pack tissue. | |
| Paper sorting mode | Automatic Smart Feeding | 5 sectional intelligent soft type paper feeding mode |
| Design production speed | ≤65packs/min | Relate to packaging size |
| Stable production speed | 50-60packs/min | Tissue height:≤90mm, |
| ≤60packs/min | Tissue height:≥90mm |
| Packaging film changing | ≤2min | Relate to experience and skill |
| Paper length | 125-300mm | Can be customize if your product exceed this size |
| Paper height | 60-170mm |
| Paper width | 115-250mm |
| Moulds | 3 sets | Standard configuration,sizes are provide by buyer. |
| Machine dimension | L4400mm,W3780mm,H2000mm | |
| Machine weight | ≤4000KG | |
| Packaging material | Double sides hot seal CPP film | |
| Film thickness | 0.04mm-0.05mm | |
| Max.film roll diameter | 500mm | |
| Film core diameter | 76mm | According to international standard |
| Max.film width | 500mm | |
| Compressed air | ≥0.5mpa,100L/min | Buyer prepare |
| Power supply | 380V/50HZ | Can be customize |
| Total power consumption | 15.47KW | |
| Adaptive voltage change | +/-10% | |
| I/O input | 24VDC | |
| I/O output | 24VDC | |
| Machine movement mode | 11 shafts servo positioning control | Electric cam movement curve |
| Main transmission mode | Electric cam transmission | |
| Machine color and craft | Grey,static electric spray coating craft | International color code no.: RAL7032 |
| Packing type | 3D packing | Packaging film overlap sealing,even for both sides |
After Sale Services
Spare Parts
YouYuan provides around-the-clock parts support to keep your business moving.
- 24/7 breakdown support
- 2,600+ part numbers stocked in our warehouse
- Expediting for non-stock parts requests
- Professional team members dedicated to supporting your parts needs
Installation
We're here to get you started on the right foot.
